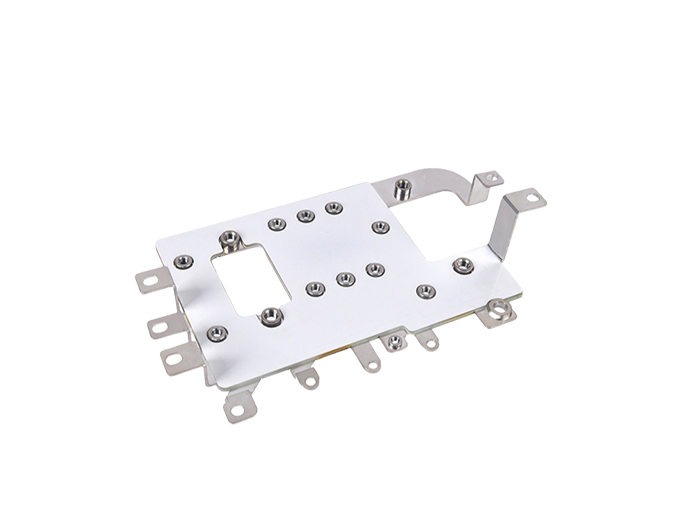

Laminated Bus Bar

Laminated Bus Bar, also known as composite bus bar, is a multi-layer composite structure composed of conductive materials such as copper and aluminum, as well as insulation materials, which can achieve electrical connection between power devices and main circuit components. It is widely used in power electronic systems as an electrical connection between power devices and the main circuit.
Industrial electrical bus bars are mainly used in high voltage and high current fields such as rail transit, industrial frequency conversion, and new energy generation. The electronic control bus bar is mainly used in new energy vehicles, equipped with medium and low voltage systems such as 48V.

LAMINATION ADVANTAGES

 · Less overall cost

A laminated bus bar simplifies the design and manufacturing process of the distribution system, reduces material and labor costs, and thus achieves a reduction in overall cost.

 · More compact design

The compact design of the laminated bus bar reduces the volume and weight of the distribution system, making system integration more convenient and saving space.

 · Faster installation speed

Due to the modular design of the laminated bus bar, the installation process is simple and fast, greatly reducing installation time and labor costs.

 · Higher current carrying capacity

The special structure of the laminated bus bar makes it have a higher current carrying capacity, which can meet the distribution needs of larger scale systems.

 · Better heat dissipation performance

The open structure of the laminated bus bar facilitates air circulation improves the heat dissipation efficiency of the system, and ensures stable operation of the system.

 · Stronger Compatibility

The laminated bus bar can be connected to various types of devices, with strong compatibility, making it convenient for system expansion and upgrading.

 · Better electromagnetic shielding performance

The laminated bus has good electromagnetic shielding performance, which can effectively reduce electromagnetic interference and ensure the electrical performance of the system.

 · More environmentally friendly materials

The laminated bus is manufactured using environmentally friendly materials, which meet the requirements of sustainable development.
